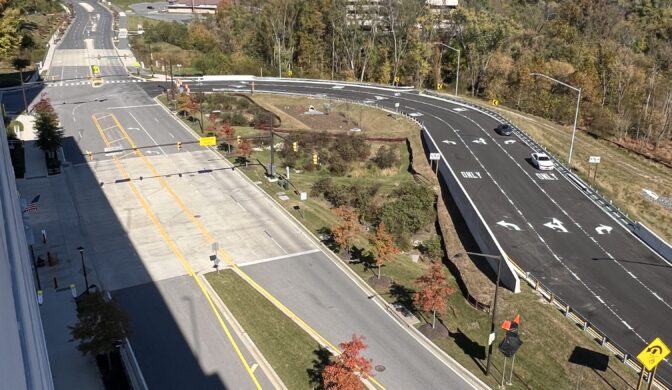

October 2024 Ramp D Spur complete

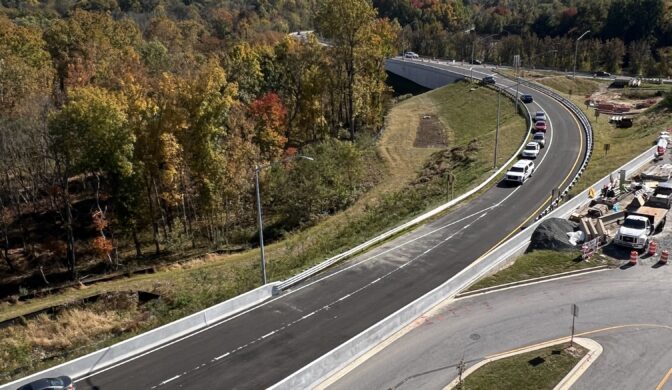

October 2024 Ramp D Spur tie-in complete

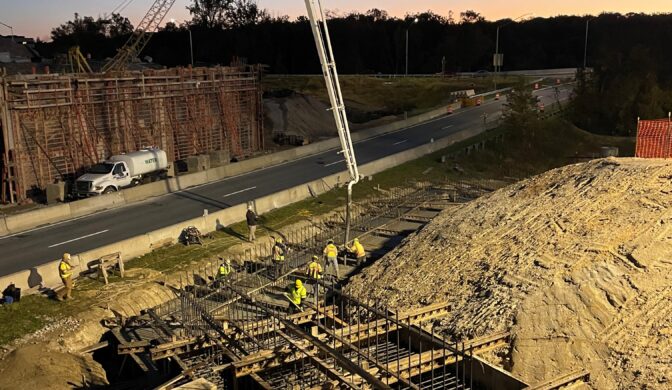

October 2024 Symphony Abutment A footer pour

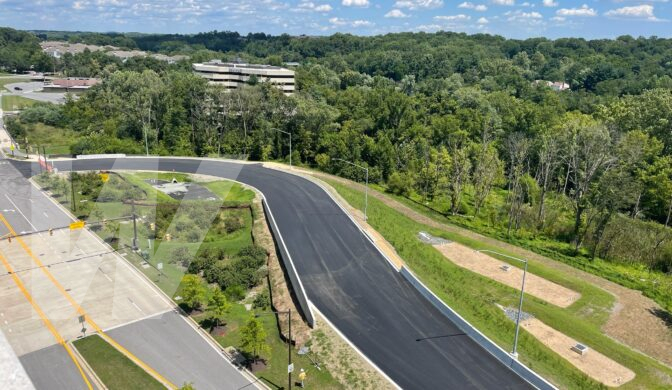

August 2024 Paved Ramp D spur

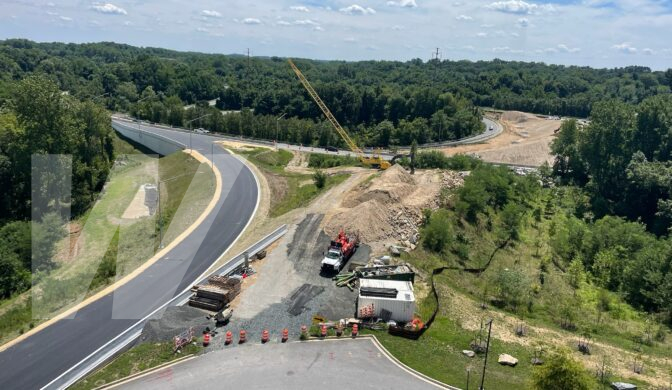

August 2024 Paved Ramp D spur and Symphony Connector Bridge Access

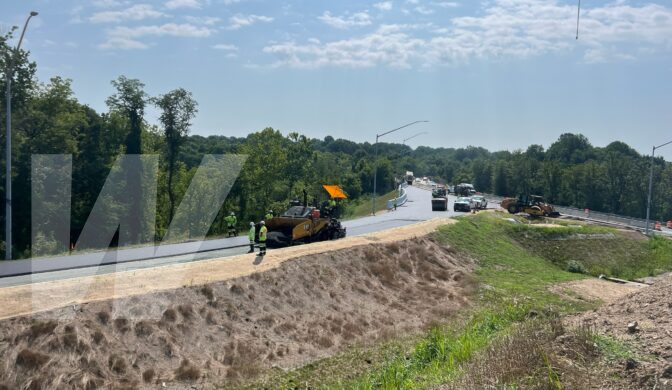

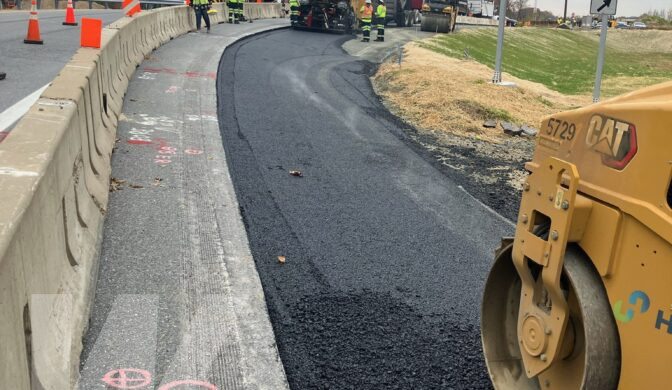

August 2024 Surface paving Ramp D spur

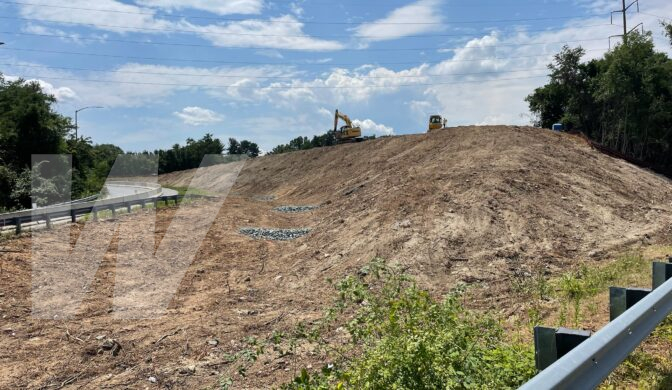

July 2024 Symphony Connector Bridge Access

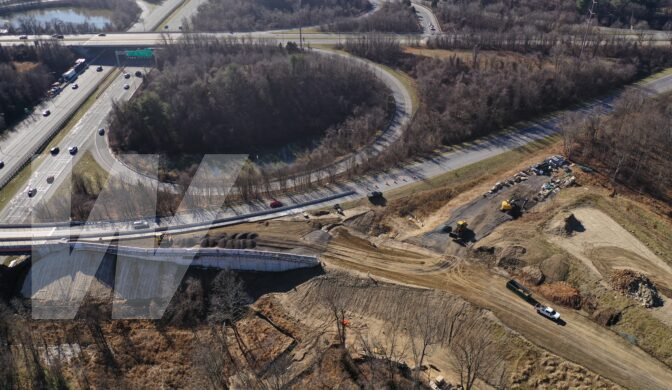

January 2024 Ramp D spur subgrade construction

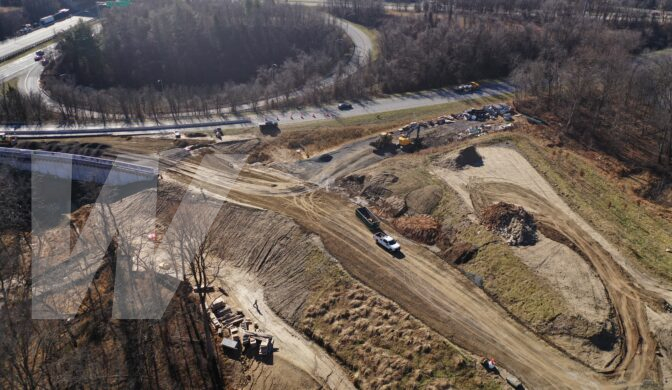

January 2024 Ramp D spur looking south

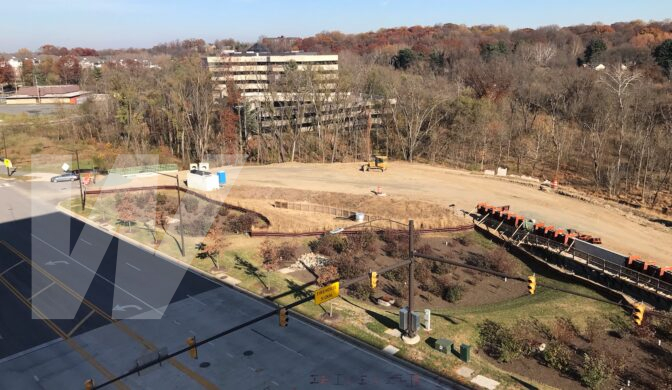

November 2023 Ramp D Spur subgrade construction

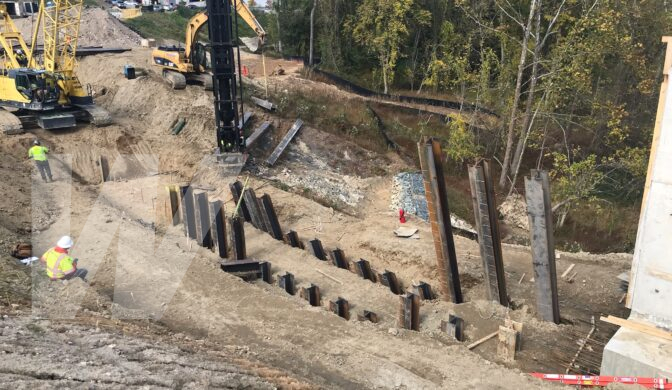

October 2023 Retaining wall 1 bearing pile installation

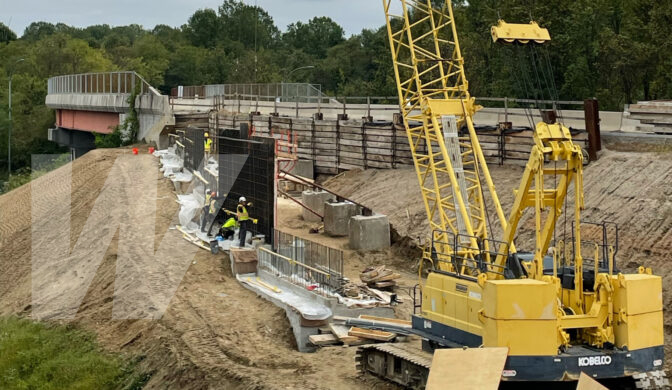

September 2023 Retaining wall 1 with cast-in-place concrete

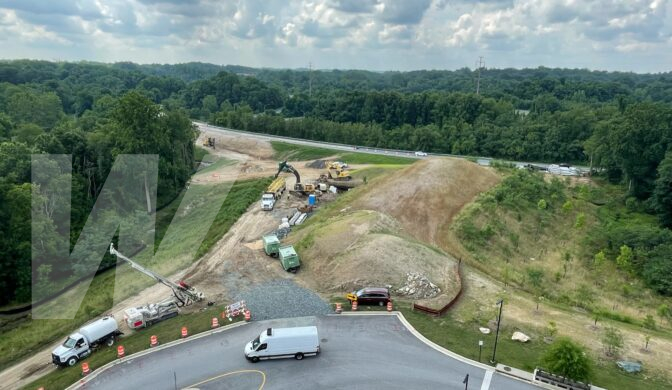

July 2023 Ramp D Spur Grading
July 2023 Ramp D Spur
June 2023 Predrilling for retaining wall

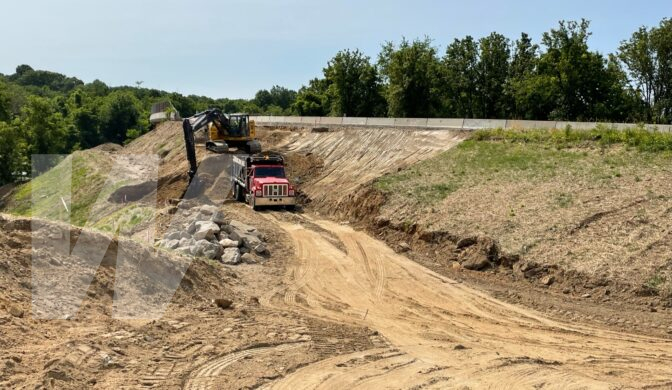

June 2023 Retaining wall excavation
-
Location
Columbia, MD
-
Duration
Spring 2023 - Spring 2025
The multi-phase Symphony Woods project, with an estimated value of $20M, is an MDOT SHA Access Permits Project, in partnership with a private owner and Howard County, MD. The project enhances the safety and access on/off MD 29 and Broken Land Parkway, to the recently developed Downtown Columbia, including the Merriweather Post Pavilion and the Columbia Mall.
Work will be completed in two phases. The ultimate project scope includes the construction of a new MD 29 off ramp spur, including a large retaining wall adjacent to the off ramp, three additional retaining walls along the new MD 29 ramp spur and a single span bridge. The initial work completed by Wagman included the construction of a new MD 29 off ramp spur, which serves as direct access to Symphony Woods Rd from MD 29 NB to Broken Land Parkway.
Key Challenges & Project Details
- A large retaining wall adjacent to the MD 29 off ramp requires predrilling and battered H-pile, which was completed by Wagman’s Geotechnical Construction Group.
Project Fun Facts
-
Wagman was sought out by the owner to complete the project because of the success of the MD 32 Dualization project, located nearby.
