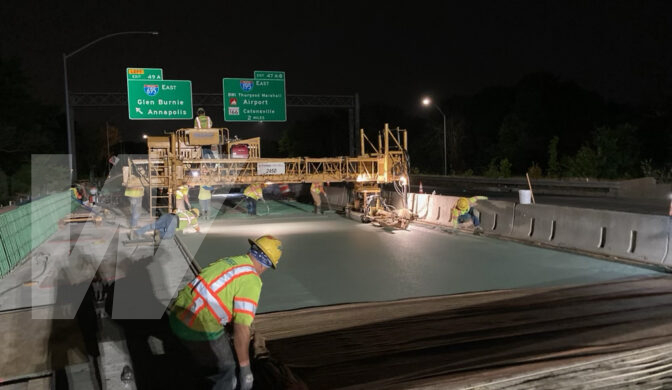

February 2024 Placement of LMC overlay on bridge deck

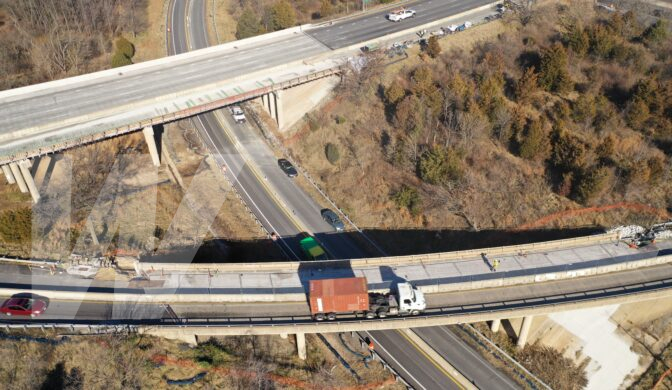

January 2024 Bridge S2 (bottom) with scarified deck and Bridge S3 (top) with parapet demo complete

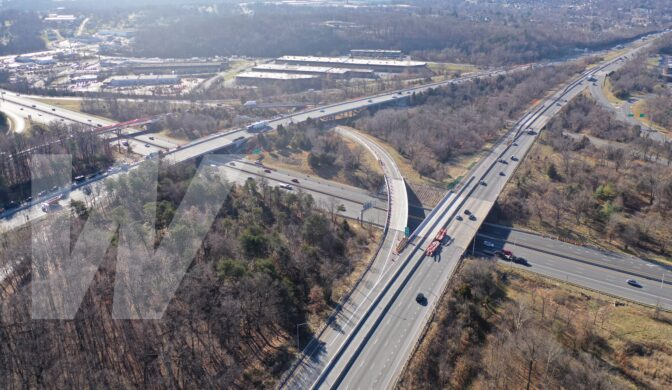

January 2024 I-95 looking south, work zone in split condition for rehab on Bridges S5, S6, S13

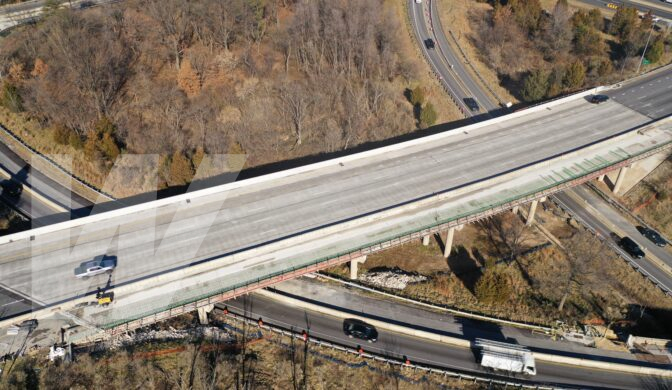

January 2024 Final stage of bridge S3, hydro-demolition complete with rebar installation for upcoming deck pour

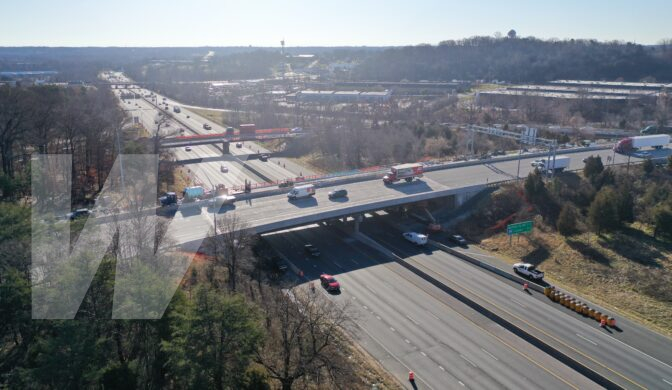

January 2024 I-95 NB and I-695 Ramp to I-95 NB under construction over the 695 Baltimore Beltway
April 2023 Aerial view of bridges for rehabilitation
April 2023 Aerial view of bridges for rehabilitation
April 2023 Aerial view of bridges for rehabilitation

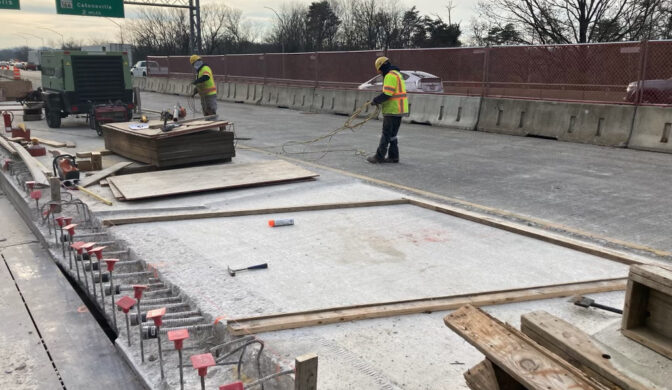

January 2023 Bridge deck preparation for overlay
-
Location
Baltimore County, MD
-
Duration
Winter 2022 - Summer 2025
-
Owner
MDOT SHA
The $39M project includes the rehabilitation of bridge decks and parapets on 10 Bridges, for the Maryland Department of Transportation State Highway Administration at the I-95 / I-695 interchange in southwest Baltimore County. This three-year project will extend the lifespans of these structures and improve safety on the interchange.
Latex Modified Concrete (LMC) overlay will be installed on each of the 10 bridge decks and existing concrete side barriers and bridge deck overhangs will be replaced. Other improvements include paving, structural steel repairs, replacing bridge drain inlets, joints, curbs and slope protection, and upgrades to traffic barriers and drainage.
Key Challenges & Project Details
- To perform the work, maintenance of traffic is extensive, with 19 phased work areas that are shifted throughout the duration of the project.
- There are three different types of structures – seven steel girder bridges, two voided concrete slab and one multi-cell concrete box beam.
- The location of the project is within one mile of the I-95 Deck Rehabilitation and Joint Replacement project that Wagman completed in 2016.
