May 2014 Northbound view
May 2014 Southbound view
May 2014 Replaced bridge bearing
2014 Bridge sweeper truck cleaning I-83 prior to opening to traffic

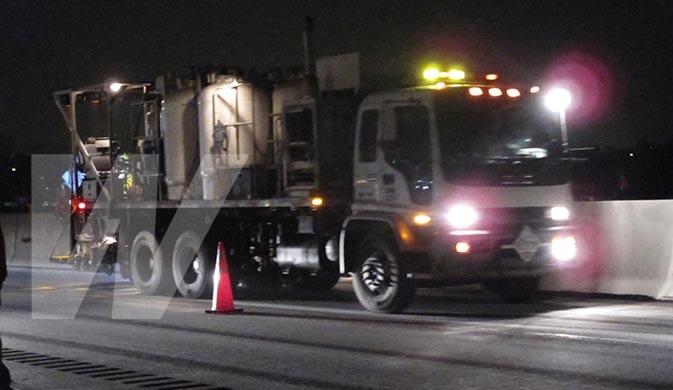

2014 Final pavement markings applied to I-83
October 2013 Placing approach slab concrete
October 2013 Placing approach slab concrete
October 2013 Finishing concrete approach slab and concrete barrier
October 2013 Cleaning out existing deck join in preparation of barrier replacement

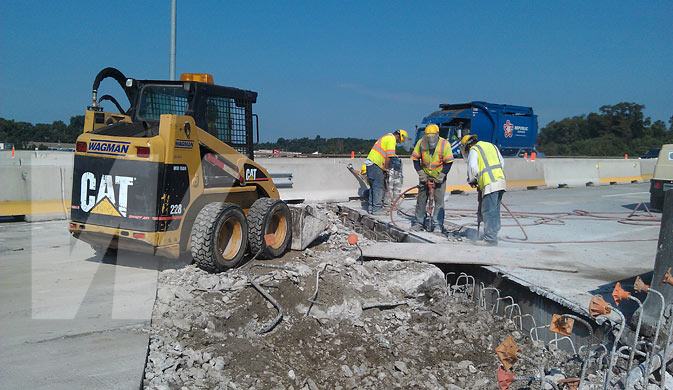

August 2013 Removing existing approach slab

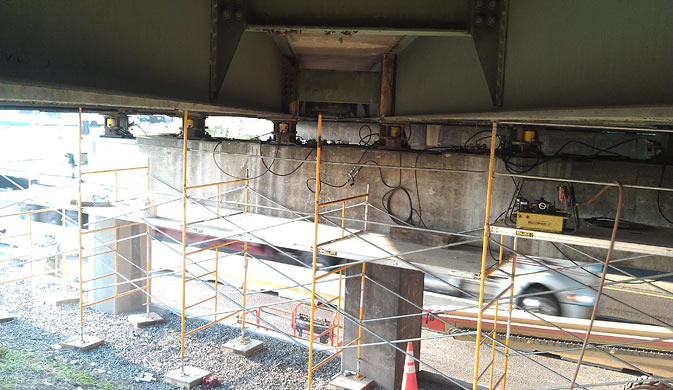

August 2013 Beam jacking at pier
July 2013 Scaffolding for pier repairs

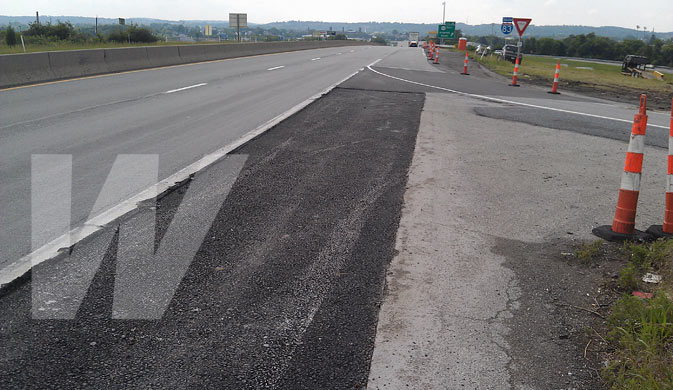

July 2013 Shoulder widening at bridge approach
July 2013 Preparing for barrier removal

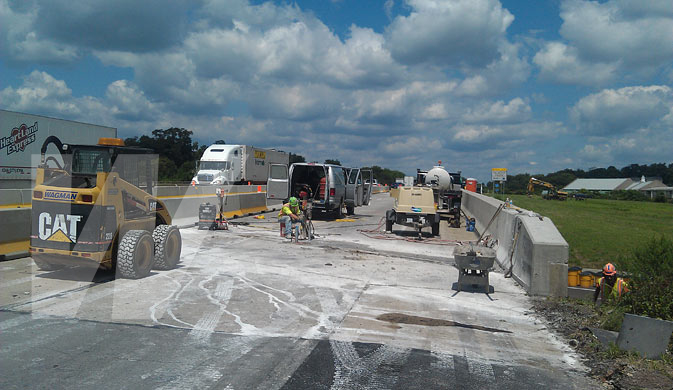

July 2013 Core drilling bridge deck
June 2013 Widening roadway to allow shifting of traffic away from median barrier
June 2013 Shoulder widening at bridge approach
June 2013 Shoulder widening at bridge approach
June 2013 Drilling for signal foundation

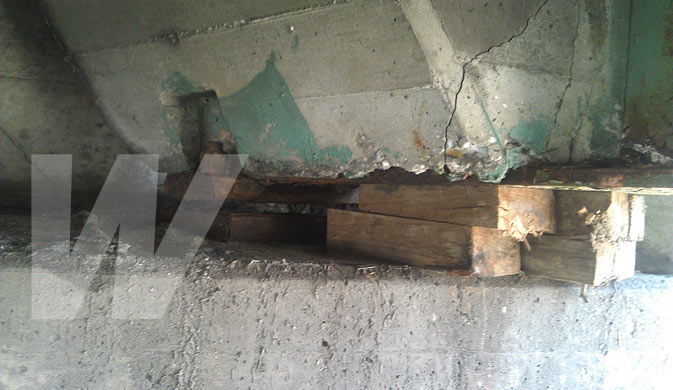

April 2013 Existing bearing
April 2013 Existing bearing
-
Location
York, PA
-
Duration
April 2013 – November 2013
The I-83 over US 30 Rehabilitation project in York, PA involved replacing deteriorated bearings and performing significant superstructure rehabilitation on I-83 over US 30. This $2.2 million project for the Pennsylvania Department of Transportation required phased construction and multiple traffic shifts to maintain two lanes in each direction and nighttime detours of I-83 to allow for superstructure bear replacement.
Key Challenges & Project Details
- Bridge deck repairs: 870 SF
- Concrete poured: 200 CY
- Bearings: 45
- Concrete: 160 CY
- Work was performed in double shifts to meet project deadline.
- Three project phases: right-hand lane of northbound I-83, right-hand lane of southbound I-83, and left-hand lanes of north and south-bound I-83
Project Fun Facts
-
The life expectancy of the new bearings is 30-40 years.
