July 2011 Redesigned Metro Access Road Interchange
July 2011 Reconfiguration of the Metro Access Road and Shade Grove Road Interchange

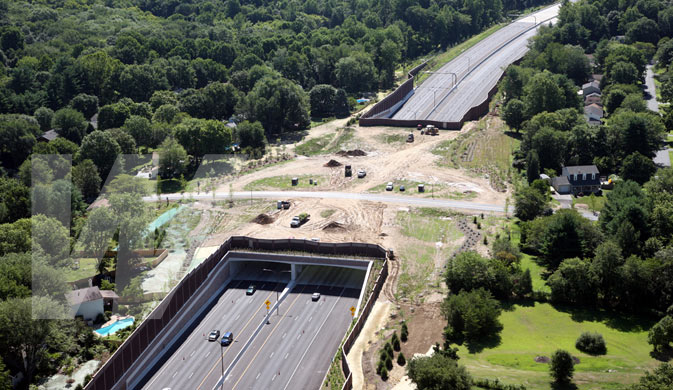

July 2011 Final grading and landscaping for the Cut & Cover Tunnel at the Olde Mill Development

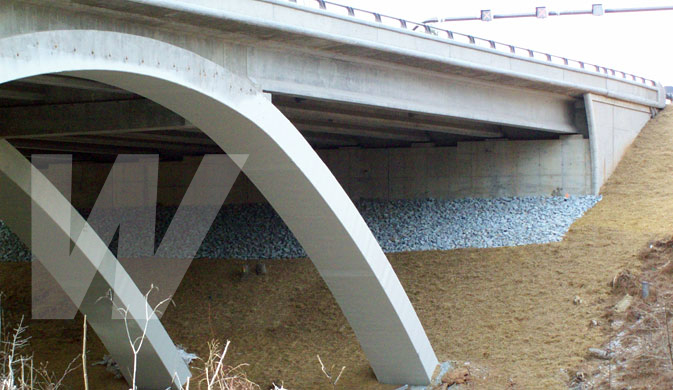

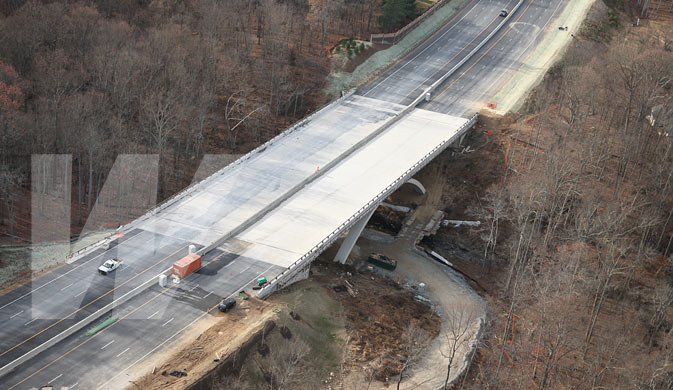

July 2011 Arch Bridge over Rock Creek
June 2011 Westbound MD 200 view of Muncaster Mill Road Bridge

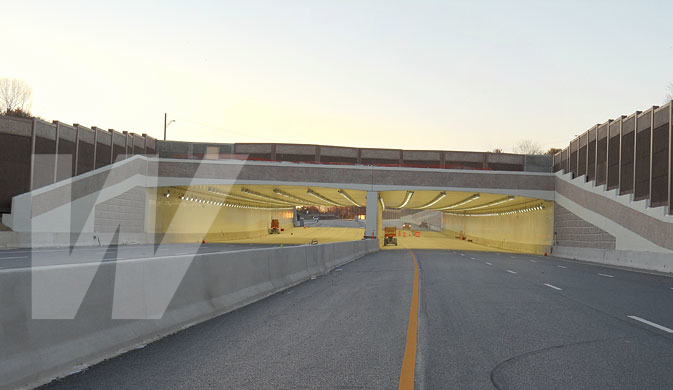

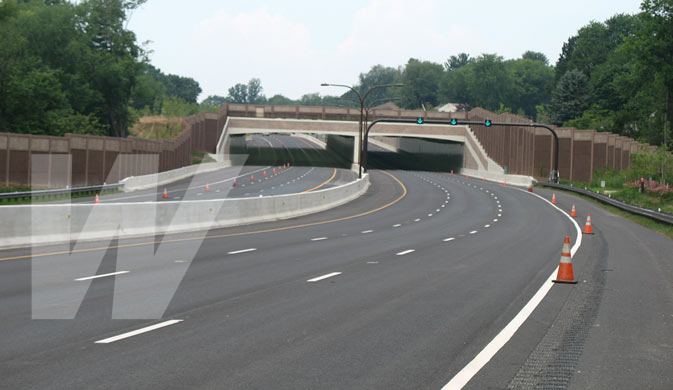

June 2011 Westbound MD 200 approach to Cut & Cover Tunnel
June 2011 Subcontractor working on light fixtures in Cut & Cover Tunnel

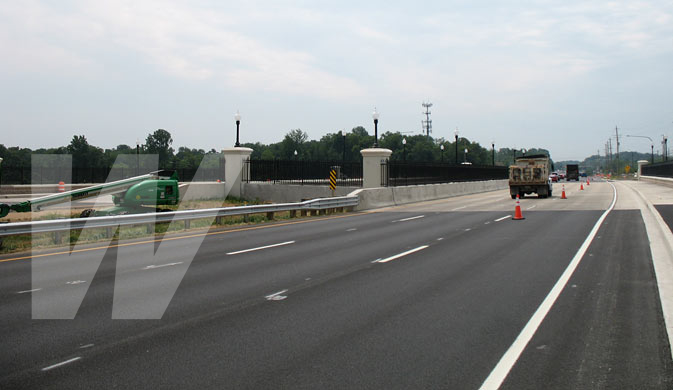

June 2011 MD 97 Southbound view of Georgia Avenue Bridge
May 2011 Westbound Mainline Bridge in foreground, electronic toll collection in background

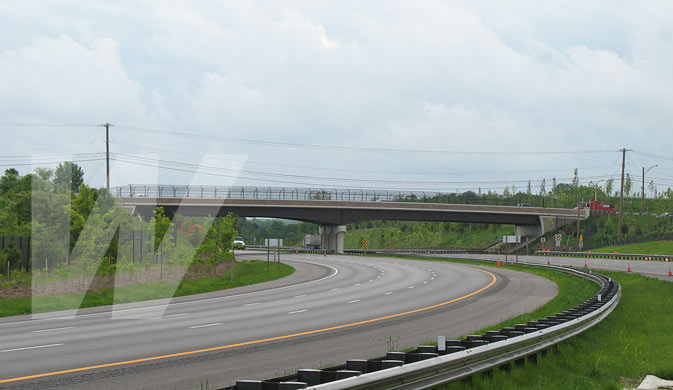

May 2011 Eastbound mainline Redland Road Bridge in background
May 2011 Eastbound mainline exiting Cut & Cover Bridge deckover
May 2011 Brook Manor screen wall construction

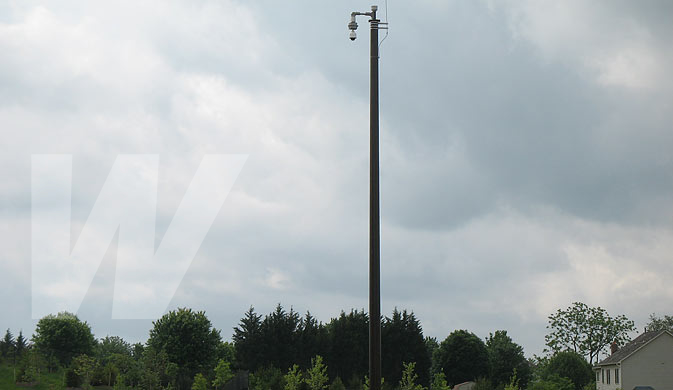

April 2011 Closed circuit television

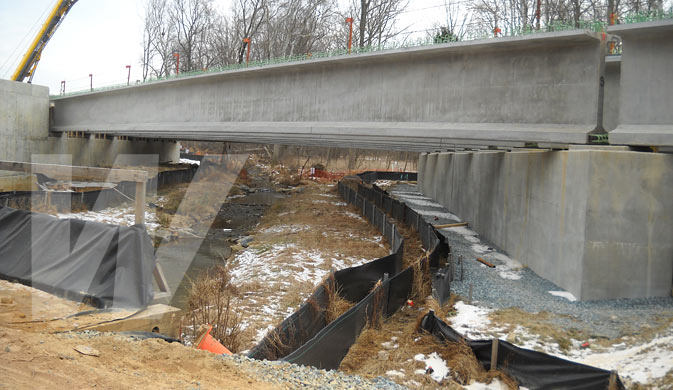

April 2011 Mainline Bridges over North Branch & Tributary
April 2011 Muncaster Mill Road Bridge over the ICC
April 2011 Needwood Road Bridge over the ICC

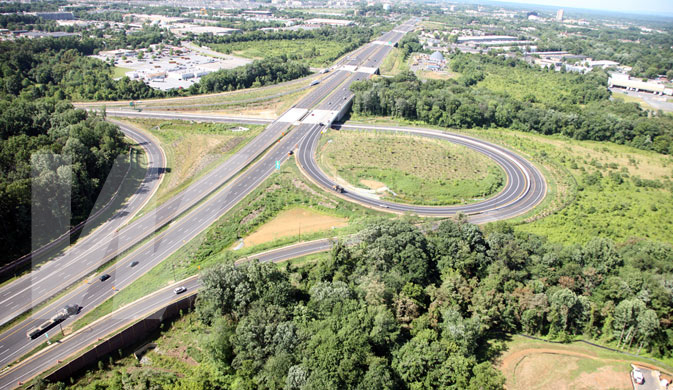

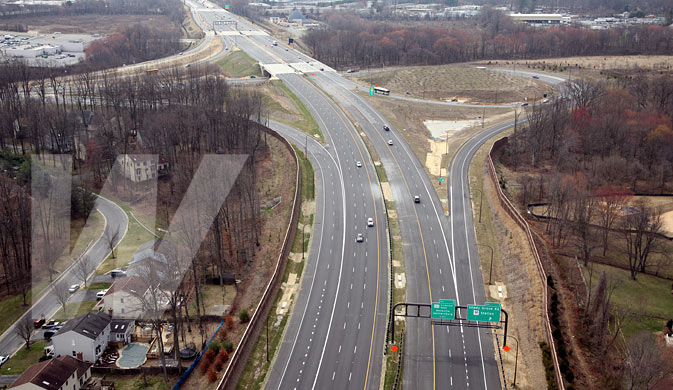

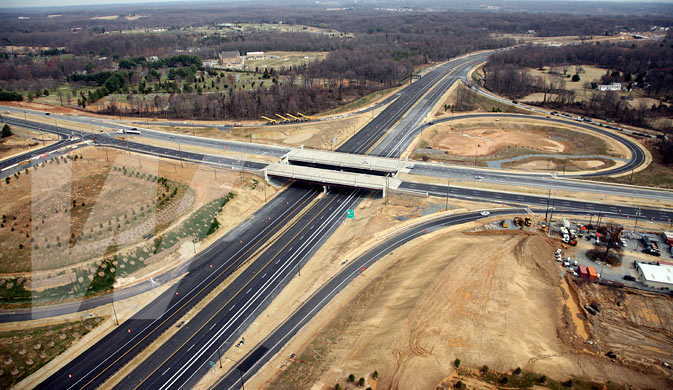

March 2011 Metro Access Road Interchange looking west toward I-370
March 2011 Georgia Avenue, MD 97, Interchange with the ICC

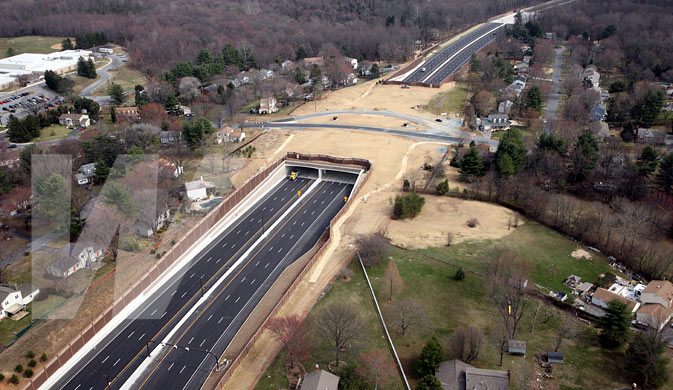

March 2011 Cut and Cover Tunnel through Mill Road Development
March 2011 Arch Bridge over Rock Creek
February 2011 Maryland Govenor Martin O’Malley speaking at the opening ceremony for ICC A
February 2011 Eastbound Mainline at electronic toll collection and Dynamic message sign approach
February 2011 Eastbound Mainline at electronic toll collection and Dynamic message sign approach

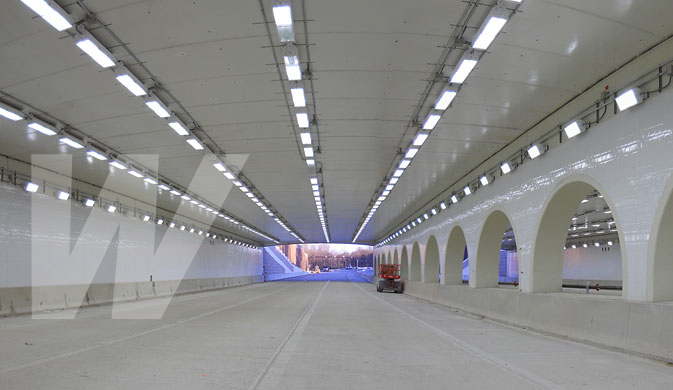

February 2011 Cut & Cover Tunnel under Old Mill Run lighting system testing

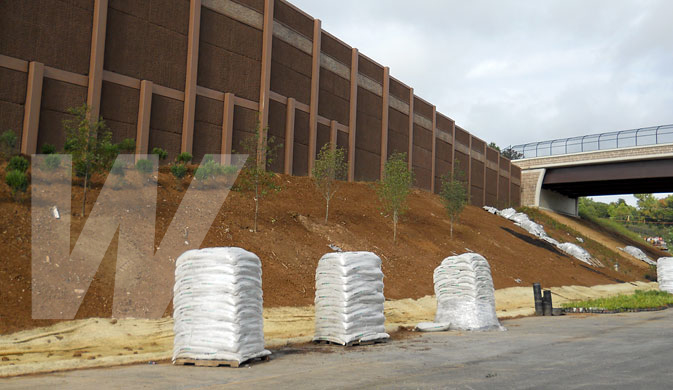

January 2011 Noisewall and retaining wall
January 2011 I-370 bridge widenings
January 2011 I-370 looking toward the new Interchange with the Metro Access Road
January 2011 Arch Bridge over Rock Creek
January 2011 Westbound lanes of the Cut & Cover Tunnel at Old Mill road
January 2011 Looking east into the Cut & Cover Tunnel

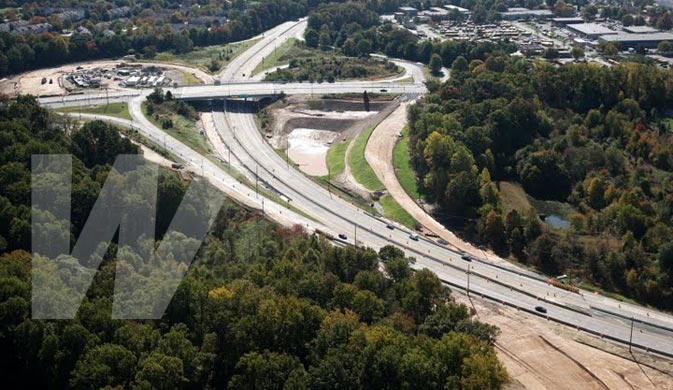

December 2010 Metro Access Road Interchange

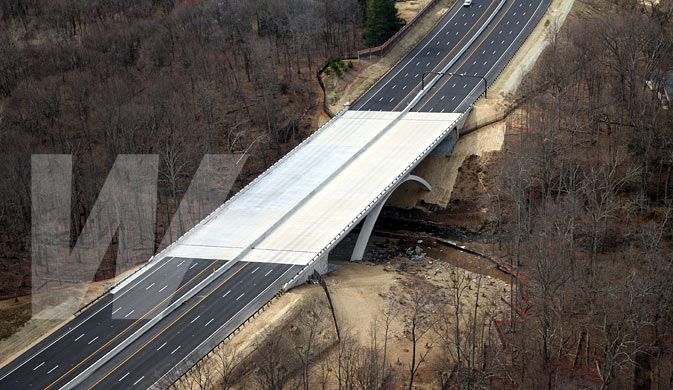

December 2010 Arch Bridge carrying the ICC over Rock Creek

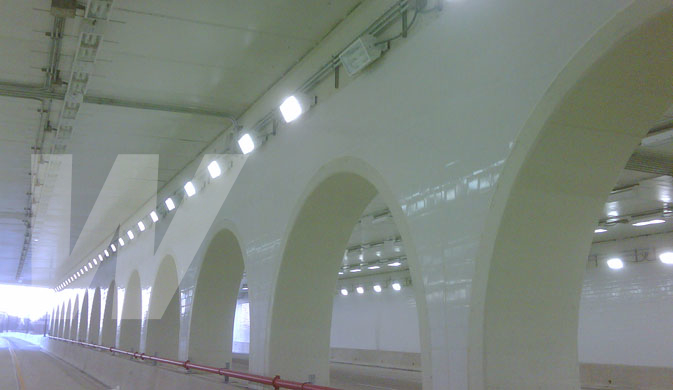

December 2010 Lighting installation in the Cut & Cover Tunnel

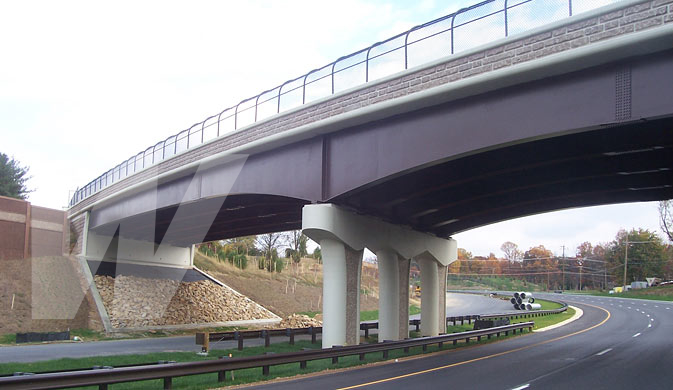

December 2010 Redland Road Bridge over the ICC

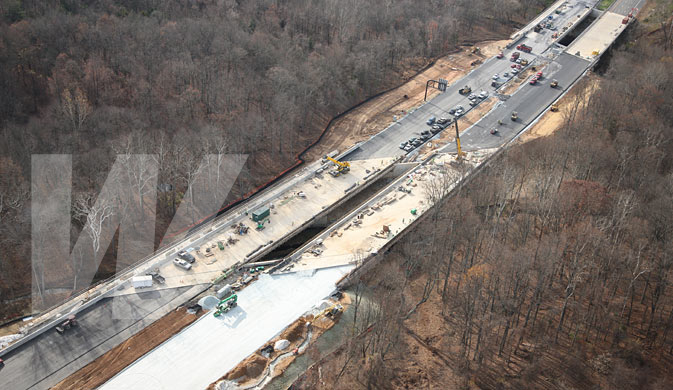

December 2010 Construction of Bridge 20 & 21 over North Branch & Tributary
November 2010 Widening of I-370 Bridge
November Redland Road Bridge

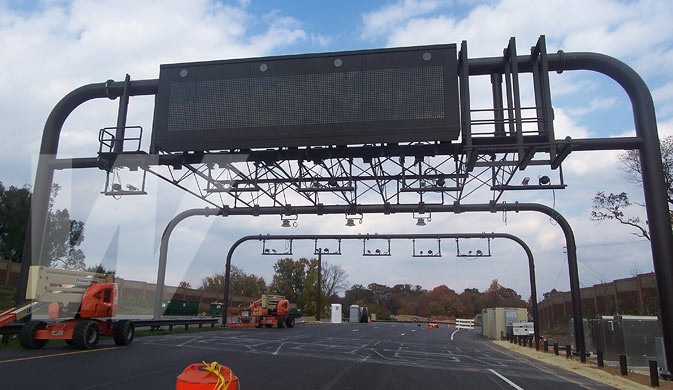

November 2010 Open road tolling gantry
November 2010 Major culvert crossing

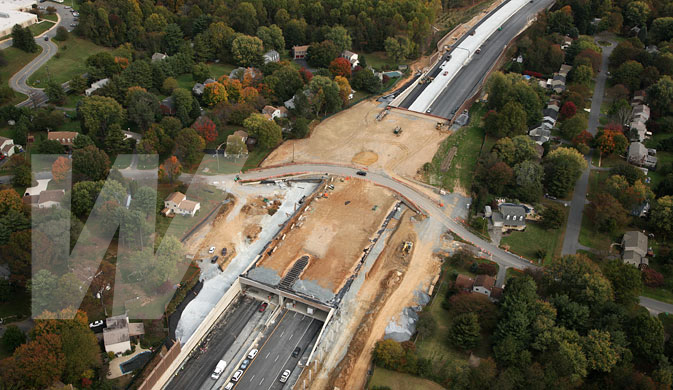

November 2010 Deck-over at Olde Mill Road
Intercounty Connector, Contract A

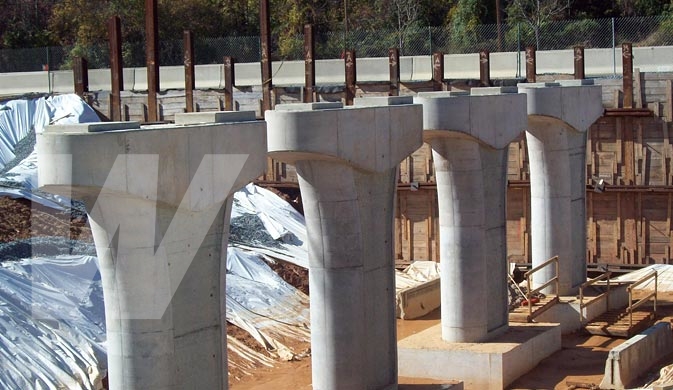

Northbound piers for Georgia Avenue Bridge
Steel erection for Redland Road Bridge

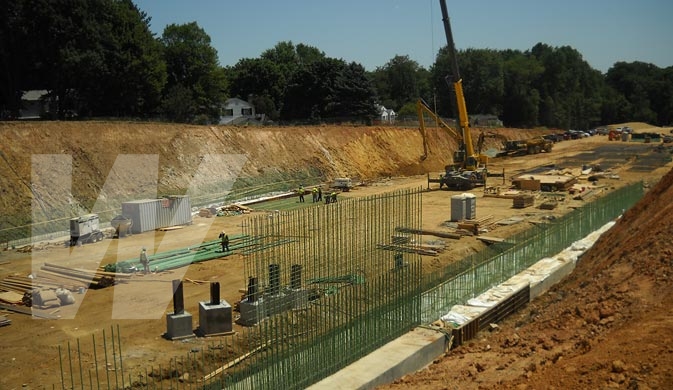

Construction of foundations for the Cut & Cover Tunnel
Bridge Widening on I-370
Structural Steel Erection for Georgia Avenue Bridge, MD 97
Roadway relocation

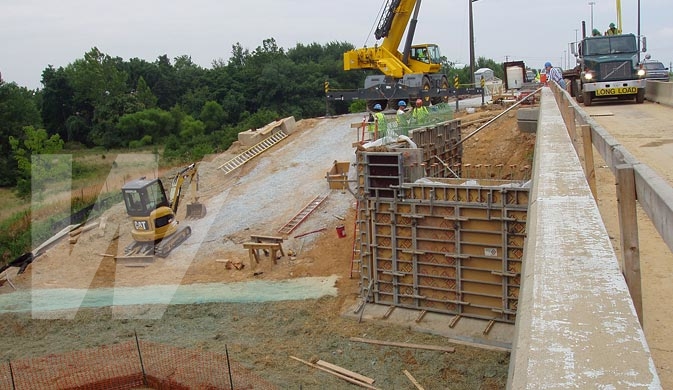

Mechanically stabilized earth abutment construction of bridge over Crabbs Branch Way

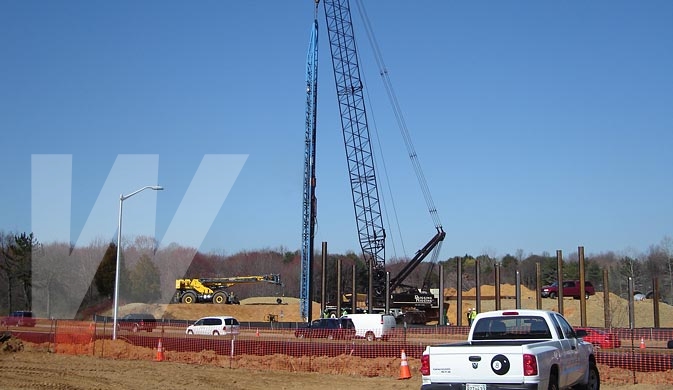

Pile driving

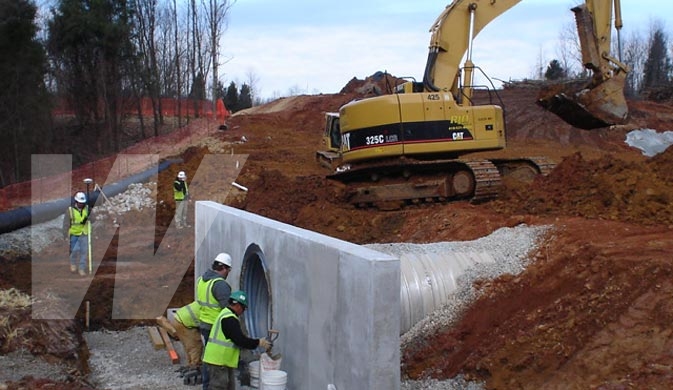

Headwall construction
Precast girder erection of Mainline Bridge over North Branch Tributary
Placing deck concrete
Placing concrete in formwork for arch
Relocating box turtles
Needwood Road Bridge
Formwork of arch rib of Arch Bridge over Rock Creek

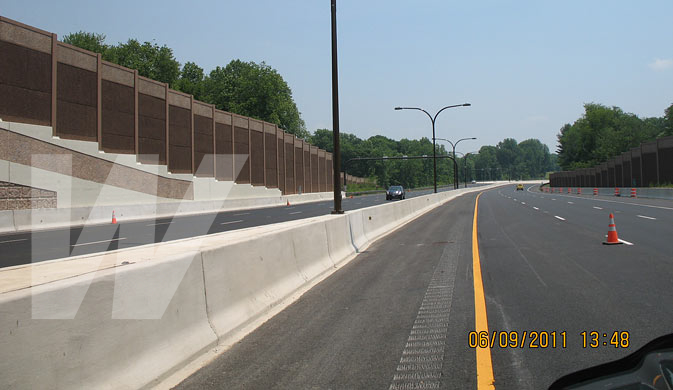

Noisewall

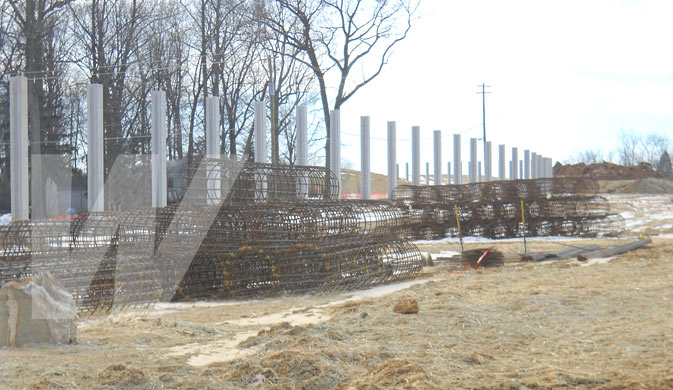

Noisewall caisson construction
Bridge construction over Crabbs Branch Way
Start of construction of the Cut & Cover Tunnel
-
Location
Montgomery County, MD, near Rockville, MD
-
Duration
Fall 2007 – July 2011
-
Joint Venture Partner
Corman Construction, Inc.
Granite Construction, Inc.
This was a $464 million highway Design-Build Project. The Intercounty Connector included interchanges with MD 355, the Metro Access Spur Road and MD Route 97 Georgia Avenue. The project also included widening and rehabilitation I-370, which included five bridges, one over a railroad, and paving overlay.
The Intercounty Connector project was an extremely environmentally and community sensitive project and extensive measures were planned by the design-build team to minimize the environmental impact of this project. ICC – Contract A was the first of 5 contracts planned to create the $1.5 Billion 18.8 mile Intercounty Connector that ultimately connected the I-270 corridor in Montgomery County, MD to the I-95/US1 corridor in Prince George’s County, MD.
Key Challenges & Project Details
- ICC A was the first large design-build highway project in Maryland
- Includes 18 bridges with 271,000 SF of bridge deck
- Steel piles: 25,000 LF
- Noise walls: 300,000 SF
- Retaining walls: 52,000 SF
- Drainage pipe: 55,000 LF
- Utility relocation: 6,000 LF
- Excavation: 2,500,000 CY
- Asphalt Paving: 500,000 tons
- Project sites cross the Upper and North Branches of the Rock Creek Watershed and the Upper Rock Creek Special Protection Area
- The Maryland State Highway Administration incorporated grooving services into the project specifications for this high profile project.
Wagman installed box culverts up to 16 feet x 40 feet to allow large mammals such as deer to pass under the highway and eliminate contact with motorists- Wagman relocated over 100 box turtles prior to clearing and grubbing
- Underground storm water management basins
- Turtle relocation
- Tree harvesting
- Environmental Manager & Environmental Compliance Crews (crews dedicated to protecting the environment)
- Culverts designed for fish passage
- Electro-shocking of fish to relocate them from the work zone
- 8-ft high right of way fence to protect deer, smaller opening fences at the base of right of way fence to keep smaller animals out
- Re-forestation areas, invasive species program and plantings
- Intercounty Connector has received national recognition for their environmental stewardship on this project.
Project Fun Facts
-
Known as America’s Greenest Highway
Project Recognition
-
2012 - National Design-Build Award - Design-Build Institute of America (DBIA)
-
2012 - Exemplary Ecosystem Initiatives Award - Federal Highway Administration (FHWA)
-
2012 - Alliant Build America Award - Associated General Contractors of America (ACG)
-
2011 - Northeast Region’s Best Overall Project (Transportation) - Engineering News Record, Northeast Region (ENR Northeast)
-
2011 - President’s Award for Highways - American Association of State Highway and Transportation Officials (AASHTO)
-
2010 - Intercounty Safety Award - EFCO
