Wagman Heavy Civil Project

Delaware Water Gap

  • Location

    U.S. Route 209, Dingman Township, Pike County, PA

  • Duration

    October 2010 – August 2012

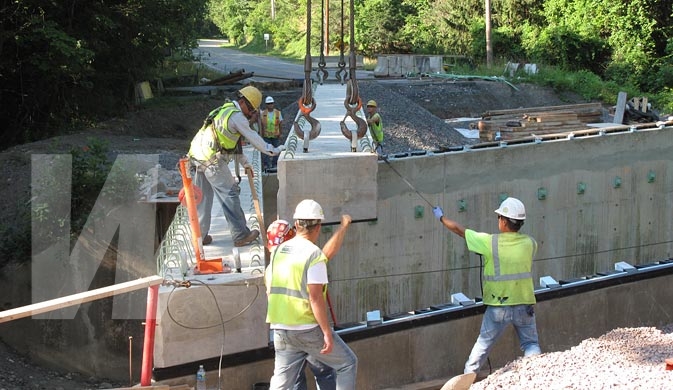

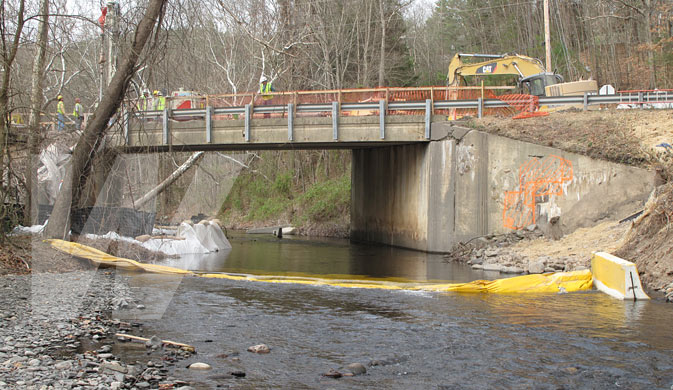

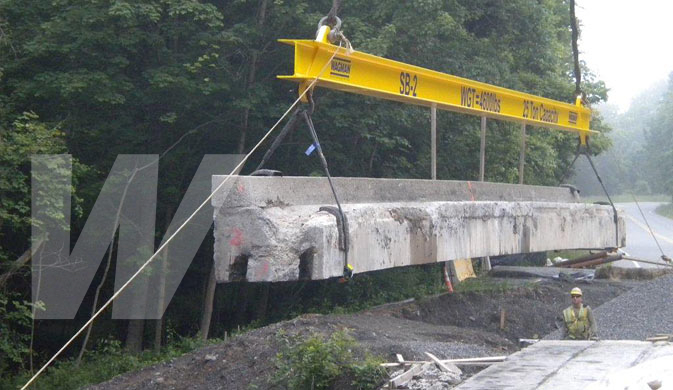

A $2.6 million design-build reconstruction of the single span Route 209 Bridge over Raymondskill Creek. The project was completed for the National Park Service and administered by the Federal Highway Administration.

Key Challenges & Project Details

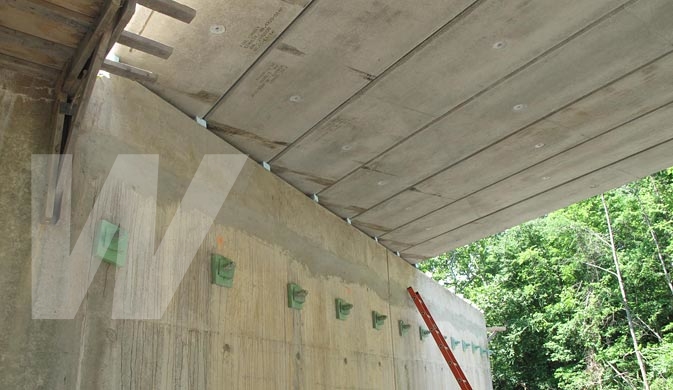

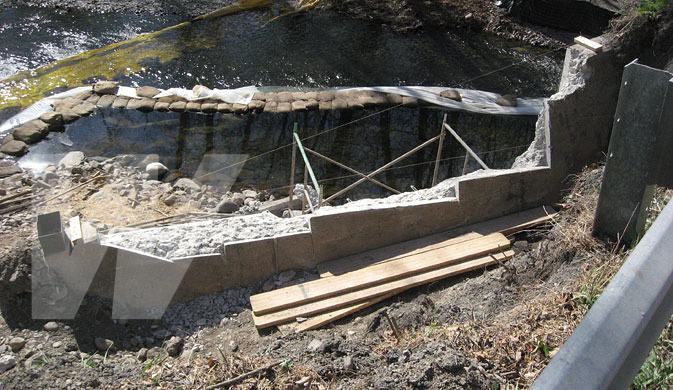

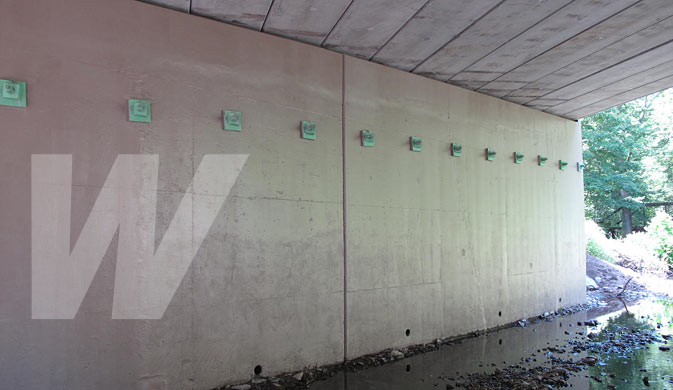

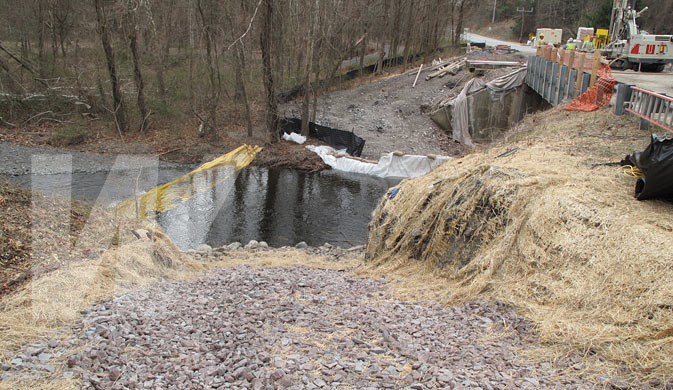

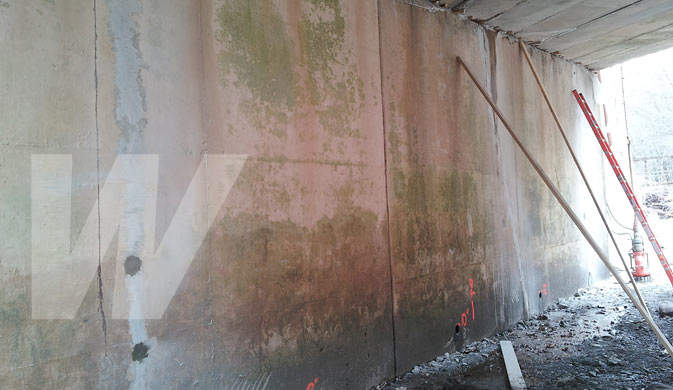

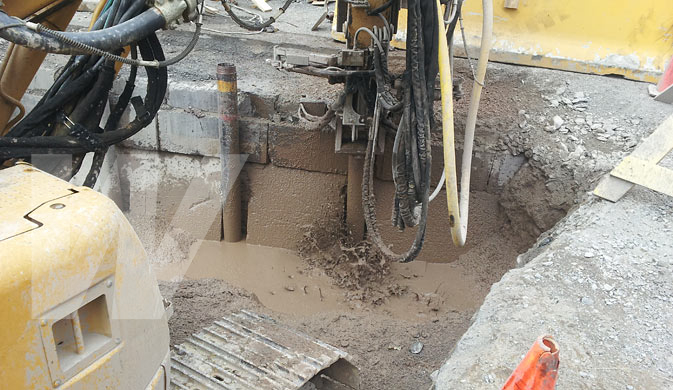

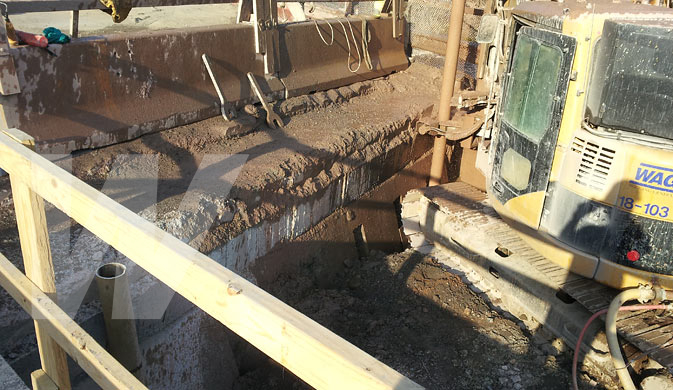

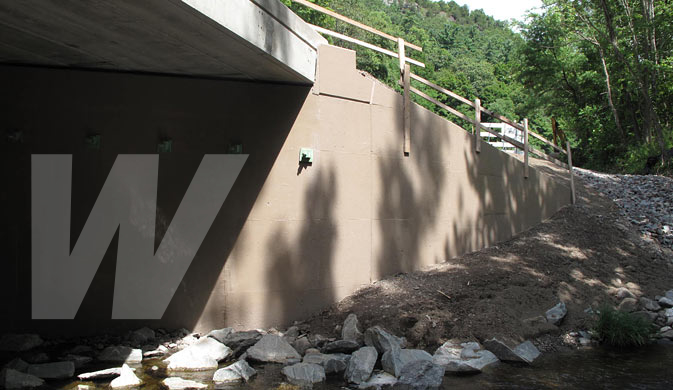

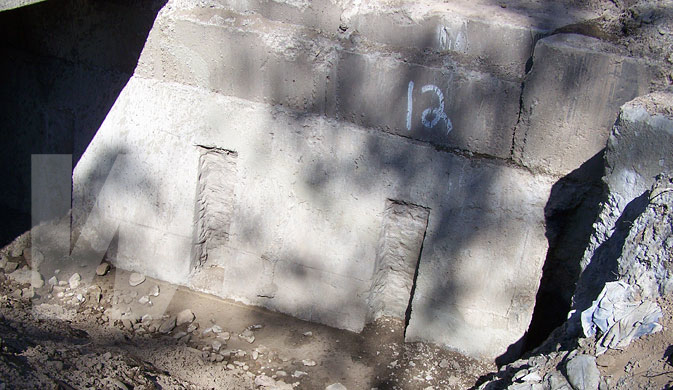

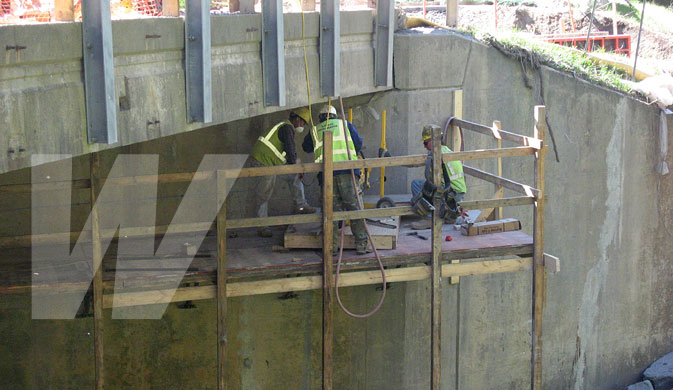

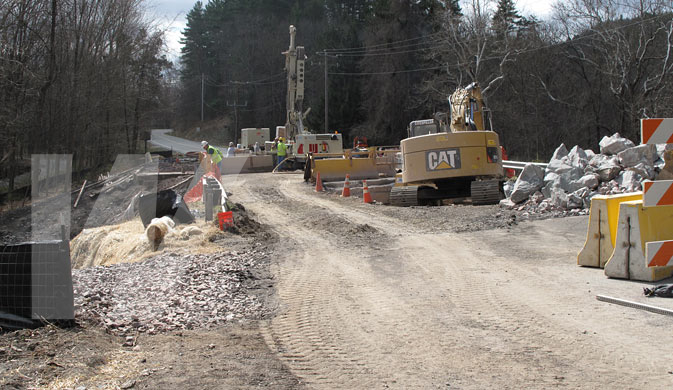

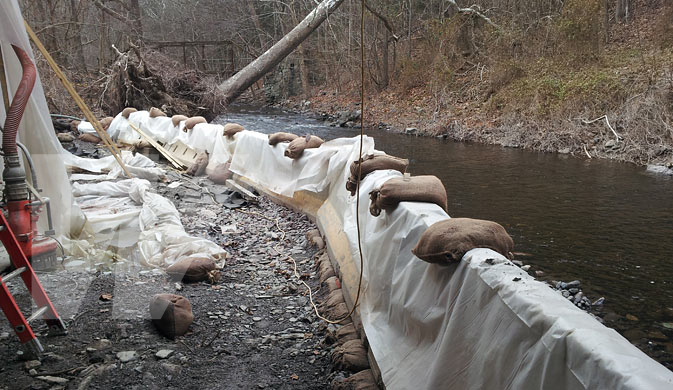

  • Existing substructure had to remain and be stabilized using a combination of riprap scour protection, micropile foundation and concrete deadman anchor system.
  • Worksite was inside a national park in an archeologically significant area.
  • The project specifications issued by the National Park Service and the Federal Highway Administration required grooving services.

Project Fun Facts

  • Three Indian tribes settled in this area of the Delaware Water Gap.

Project Recognition

  • 2013 - 2014 - Outstanding New Short Span Bridge - Association for Bridge Construction and Design (ABCD), Susquehanna Chapter
