Wagman Geotechnical Construction Project

Chapel Hill Soldier Pile Wall

  • Location

    Chapel Hill, NC

  • Duration

    January 2014 - March 2014

  • Owner

    NCDOT

Wagman Heavy Civil, Inc. and Wagman’s Geotechnical Construction group provided all necessary equipment, tools and personnel for the construction of a retaining wall in Chapel Hill, NC to protect a neighborhood from a slope failure.

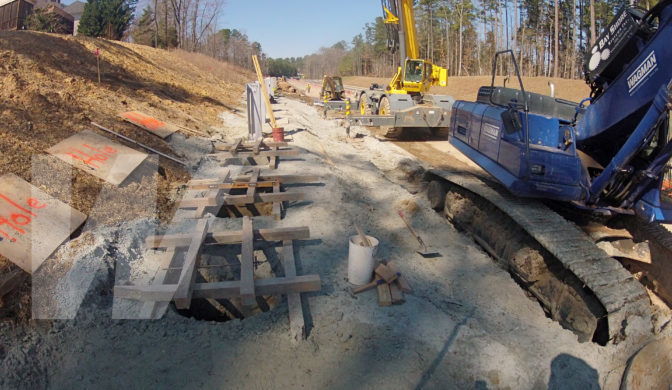

Utilizing the Bayshore Systems LD 60, Wagman drilled 110 shafts at 30” diameter. Wagman then placed and aligned the soldier piles. In coordination with Wagman’s heavy highway crews, the shafts were poured and the wall panels were placed. The new retaining wall ensured the safety of the residents.

Key Challenges & Project Details

  • The overall length of the retaining wall is 725 feet.
  • A residential neighborhood was threatened by sloughing soils on a hillside, creating a cut slope failure.
  • Average depths for the drilled shafts were 14 feet through disintegrated rock.
  • Average rock sockets were six feet.
  • Drilled shaft concrete volume was 185 CY.
