February 2023 Completed Waterview Ave Bridge
February 2023 Completed Maisel Street Bridge, Pedestrian Enclosure
February 2023 Completed Annapolis Road Bridge
January 2023 Waterview Ave Bridge
January 2023 Maisel Street Bridge pedestrian closure
December 2022 Waterview Ave Bridge
December 2022 MSE Wall
October 2022 Annapolis Road Bridge

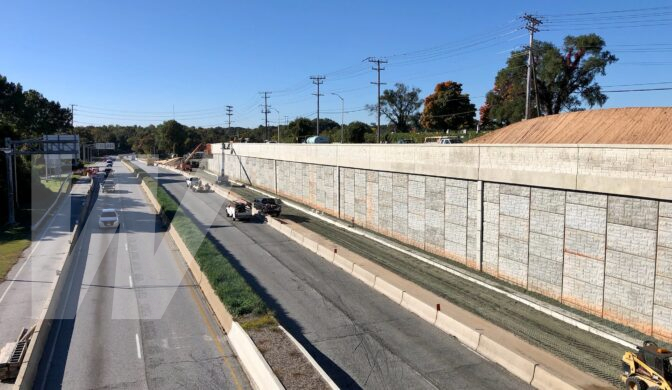

October 2022 MSE Wall along MD 295 SB

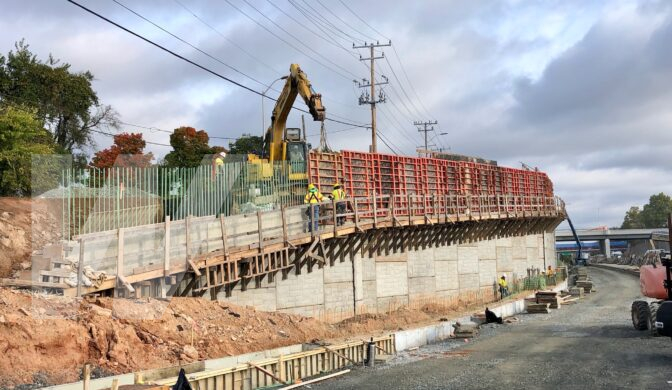

October 2022 Forming parapet on top of MSE Wall
October 2022 Forming barrier wall along MSE wall
September 2022 MSE Wall Construction along MD 295 SB
August 2022 Final Panel of MSE Wall
July 2022 Crews pouring moment slabs
June 2022 Maisel Street Bridge pedestrian closure
June 2022 Installing deck rebar at Waterview Ave Bridge
May 2022 S2 MSE Wall at Waterview Ave Bridge
May 2022 Installing S2 MSE wall panels, Waterview Ave Bridge
April 2022 Demo of existing tunnel and forming Waterview Ave Bridge, Abut A
April 2022 Forming Waterview Ave Bridge, Abutment A
March 2022 Demo of existing tunnel and completing footer Waterview Ave Bridge
March 2022 Maisel Street Pedestrian Bridge Deck
February 2022 Waterview Ave Bridge, Abutment B
February 2022 Tunnel demolition
January 2022 MSE Wall Support of Excavation
January 2022 MSE Wall Support of Excavation
January 2022 Reconstruction of MD 295 median
December 2021 Waterview Ave Bridge - forming Abutment B and median restoration

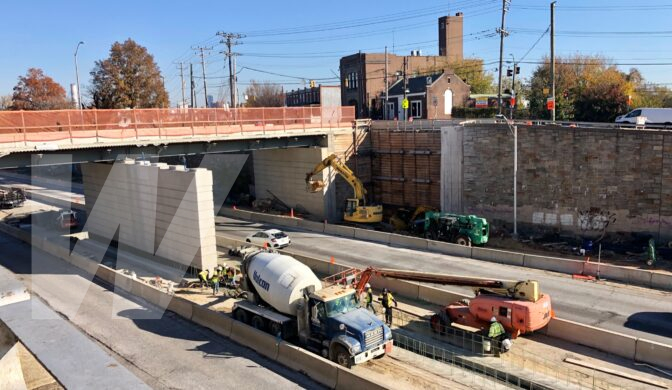

November 2021 Waterview Ave Bridge excavation, SOE and median restoration
November 2021 Waterview Ave Bridge median restoration
November 2021 Annapolis Rd Bridge prior to opening to traffic

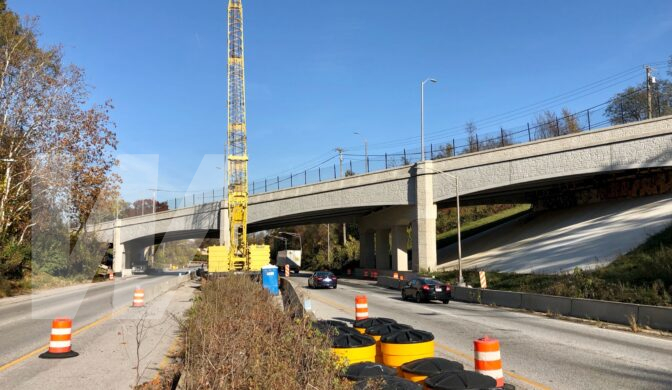

November 2021 Annapolis Rd Bridge completed architectural facade panels and parapet
November 2021 Completed architectural facade panels on S3 Annapolis Rd Bridge
September 2021 Excavating Waterview Ave Pier and installing SOE micropiles
August 2021 Installing architectural facade support brackets on Annapolis Rd Bridge
August 2021 Waterview Ave Bridge, installing micropile support of excavation

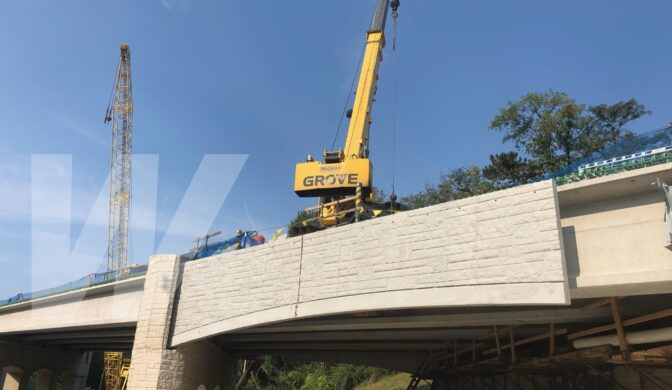

July 2021 Annapolis Rd Bridge, facade panels
July 2021 Annapolis Rd Bridge, facade panels
July 2021 Annapolis Rd Bridge, erecting facade panels
June 2021 Waterview Ave Bridge, North overhang removal
June 2021 Waterview Ave Bridge
May 2021 Annapolis Rd Bridge, Pier 2 Median Barrier
May 2021
May 2021 Waterview Ave Bridge - preparing to pour sidewalk
April 2021 Waterview Ave Bridge - pouring the parapet
April 2021 Waterview Ave Bridge - forming parapet
March 2021 Waterview Ave Bridge - Superstructure Work
March 2021 Waterview Ave Bridge - Phase 3 Bridge Girders
March 2021 Waterview Ave Bridge - Phase 3 Bridge Girders
January 2021 Erection of Waterview Ave Phase 3 Girders
January 2021 Erection of Waterview Ave Phase 3 Girders
December 2020 Annapolis Rd Bridge - deck pour
December 2020 Pouring concrete on the Annapolis Rd Bridge
November 2020 Annapolis Rd Bridge - Install of Deck Rebar
November 2020 Annapolis Rd Bridge - prior to erecting facade panels

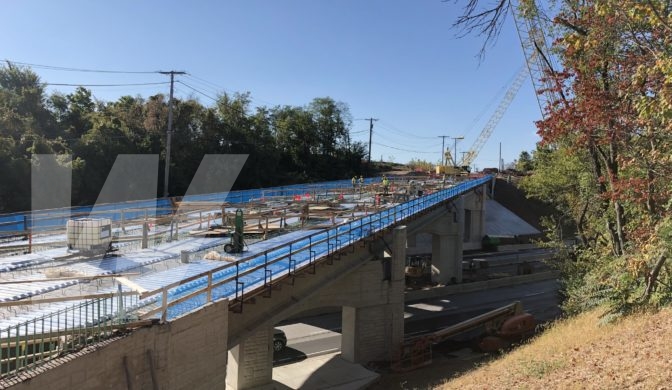

October 2020 Annapolis Road Bridge
October 2020 Annapolis Road Bridge - S3
October 2020 Waterview Ave Bridge
October 2020 Waterview Ave Bridge, Abutment A
September 2020 Erecting beams at Annapolis Road Bridge
September 2020 Span 1 and 2 Beams Erected at Annapolis Road Bridge
August 2020 Erecting the first beam at Annapolis Road Bridge
August 2020 Erecting bearings at Annapolis Road Pier 1
August 2020 Forming the abutment footer at Waterview Ave Abutment A
July 2020 Installing 36" drilled caissons at Waterview Ave Abutment A
June 2020 Installing pier column formwork at Annapolis Road Pier 2
June 2020 Installing SOE Tiebacks at Waterview Ave Abutment B
June 2020 Demo of existing Waterview Ave tunnel wall
June 2020 Forming pier columns for Annapolis Rd Bridge
June 2020 Excavating behind the existing Waterview Ave
May 2020 Lowering drill into excavation behind Waterview Ave bridge
May 2020 Installing driven H-pile at Annapolis Road
May 2020 Grading slope between Annapolis Road Bridge and Abutment B
May 2020 Pile Driving at Annapolis Road Bridge, Pier 2
April 2020 Installing driven pile for SOE at Annapolis Rd Pier 2
April 2020 Removing old superstructure and girders from Waterview Ave Bridge
March 2020 Installing drilled micropiles for SOE at Waterview Ave Bridge
March 2020 Annapolis Road Bridge - Formwork for Abutment B Wall
March 2020 Annapolis Road Bridge - Formwork for Abutment B wall
November 2019 Annapolis Road Bridge - Pier Cap Form Supports
November 2019 Annapolis Road Bridge - Abutment B Pile Driving
November 2019 Annapolis Road Bridge - Abutment A Pile Driving
September 2019 Annapolis Road Bridge - S3 Pier 3, Last Pipe Pile
June 2019 Annapolis Road Bridge - Abutment B looking to Abutment A
April 2019 Annapolis Road Bridge - Demo of Pier 1
April 2019 Annapolis Road Bridge - Demo of Bridge Deck
April 2019 Annapolis Road Bridge - Span 2 North Fascia Removal
-
Location
Baltimore City, MD
-
Duration
January 2019 - January 2023
This $35.3M project replaced the three bridges over MD 295, just south of downtown Baltimore, between I-695 and I-95.
- The existing Annapolis Road Bridge over MD 295 was demolished and replaced with a four-span concrete girder bridge.
- The Waterview Avenue Bridge over MD 295 was removed and replaced with a two-span steel girder structure. The removal and replacement of the Waterview Avenue Bridge was completed in two phases so traffic could be maintained on the bridge during construction. As part of the construction, the bridge included a 718′ MSE retaining wall.
- The Maisel Street pedestrian bridge was closed during the latter half of construction for the removal and reconstruction of the new two-span steel structure bridge.
Key Challenges & Project Details
- MOT minimized traffic and pedestrian impacts during construction.
- Traffic was maintained on two lanes in each direction on MD 295 during construction.
- An abandoned railroad tunnel was removed and replaced with a retaining wall.
- Finished structures replicate the architectural stone facing on existing structures.
- Wagman’s Geotechnical Construction group provided piling support during construction.
- Project includes American Disabilities Act (ADA) upgrades throughout the project limits.
