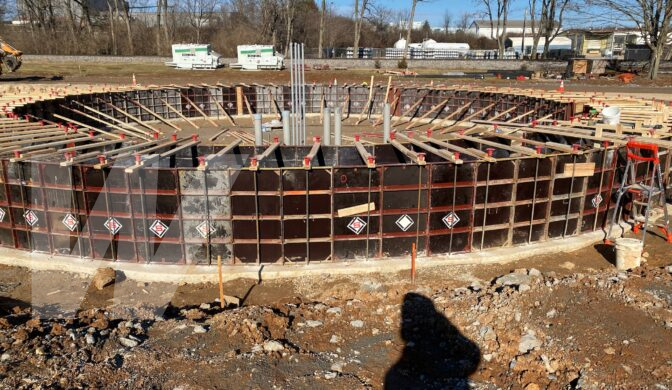

December 2023 Footer formed after micropile installation

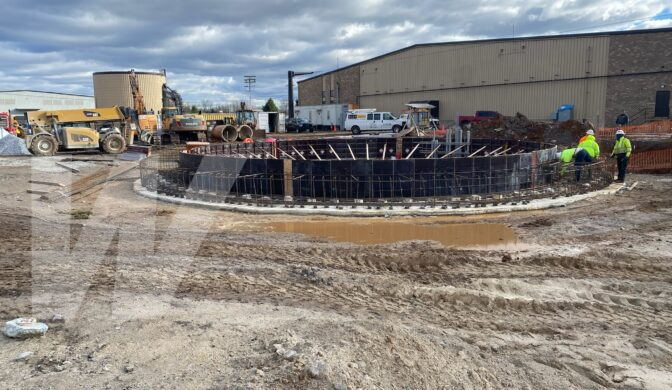

December 2023 Forming the footer around the completed piles

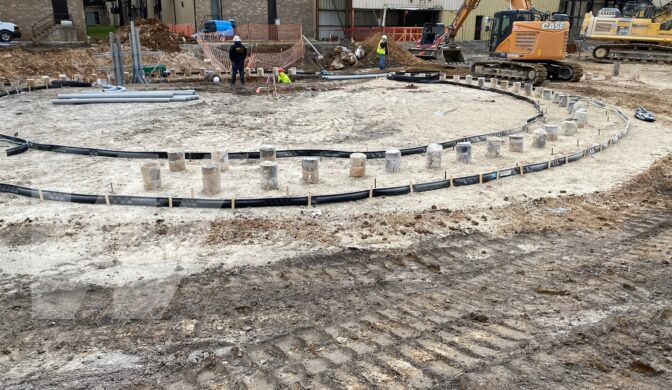

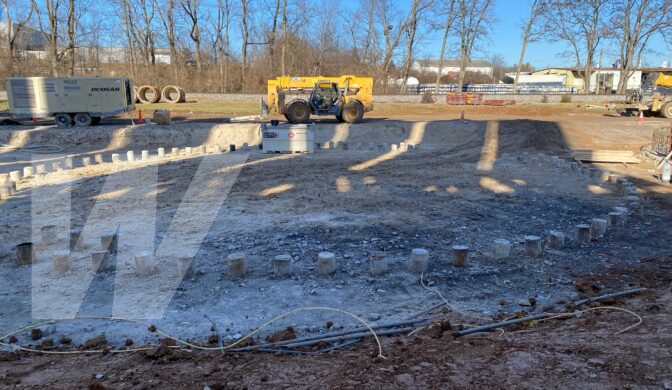

December 2023 Completed pile installation in dome 2
November 2023 Preparing to pour a mud slab

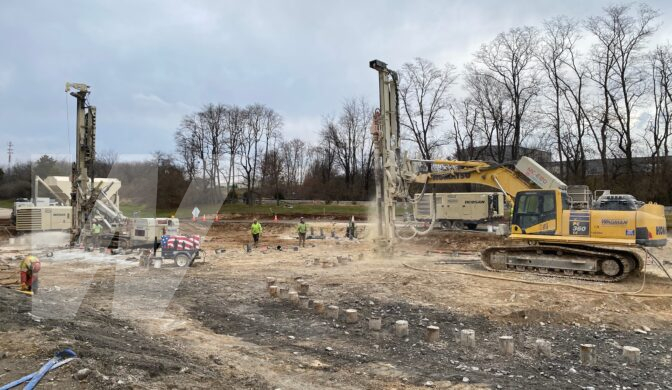

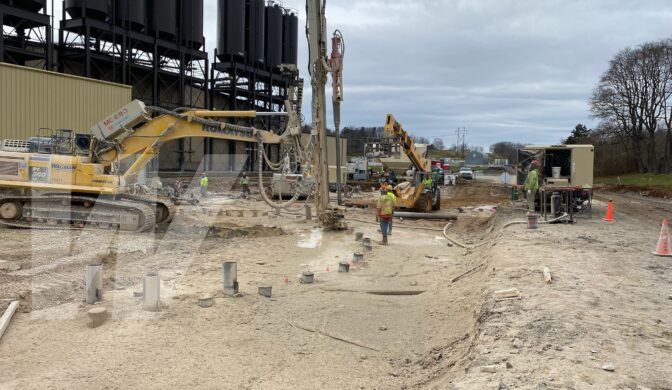

November 2023 Installing micropiles in domes 2 and 3

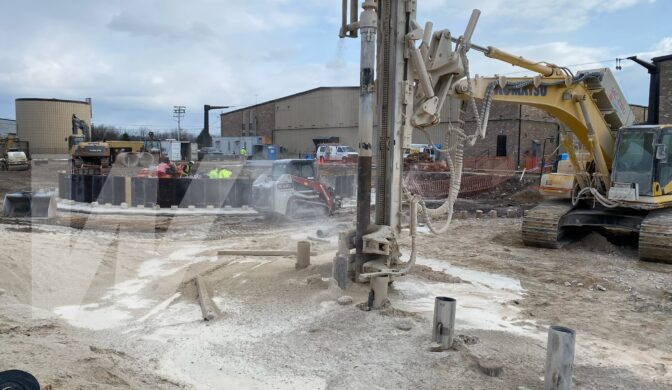

November 2023 Removing the drill rod after pile drilled to required depth

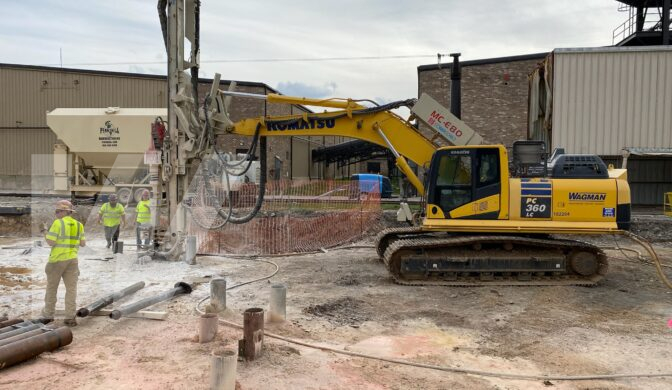

October 2023 Drilling in the micropile casing to rock
October 2023 Completing the rock socket

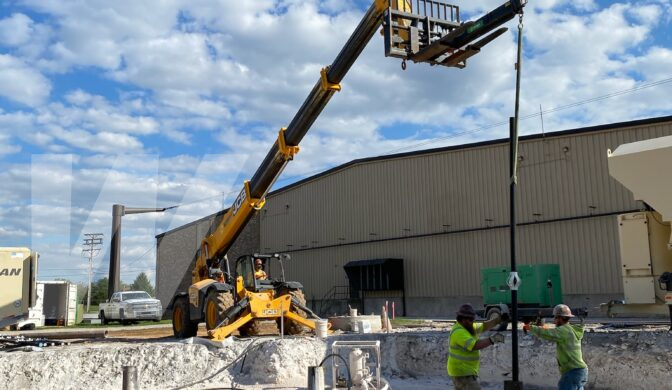

October 2023 Installing the # 28 bar in the rock socket

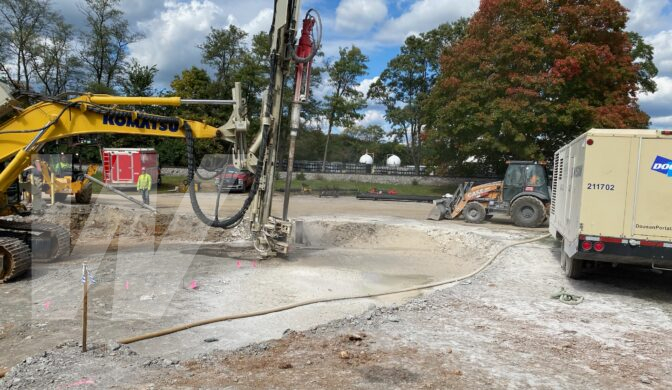

October 2023 Drilling the rock socket in the pile
-
Location
Thomasville, PA
-
Duration
October 2023 - December 2023
Wagman’s Geotechnical Construction Group contracted with Hanover Architectural Products at their Hanover Prest Paving location in Thomasville, PA. The project consisted of three different silo domes to hold bulk cement. Each silo was supported by 80 micropiles for a total of 240 piles with an average length of 29’. The design for the piles were 9 5/8” casing with a load of 372 kips per pile, socketed into limestone bedrock, and included 6,000 psi grout. The piles were installed at a five-degree batter in opposite directions to maintain clearance between bond zone of each pile in a ring to support the circular domes.
Key Challenges & Project Details
- The original project was scheduled for a duration of four months. After a second crew was added, the project was completed earlier than anticipated, cutting the duration in half.
